Replace Panasonic ES-LV61 Battery

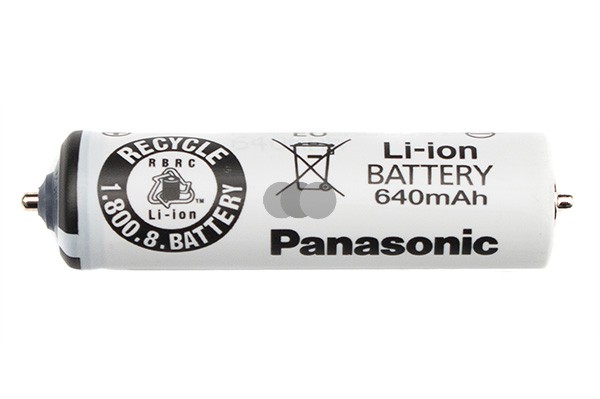

Part Info

Installation

  • Disconnect the shaver from power

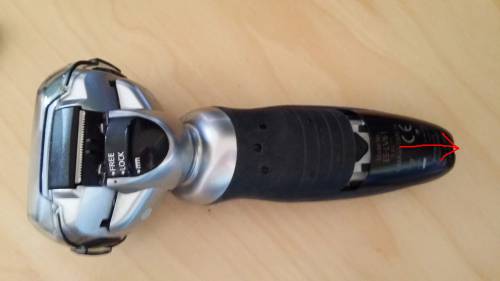

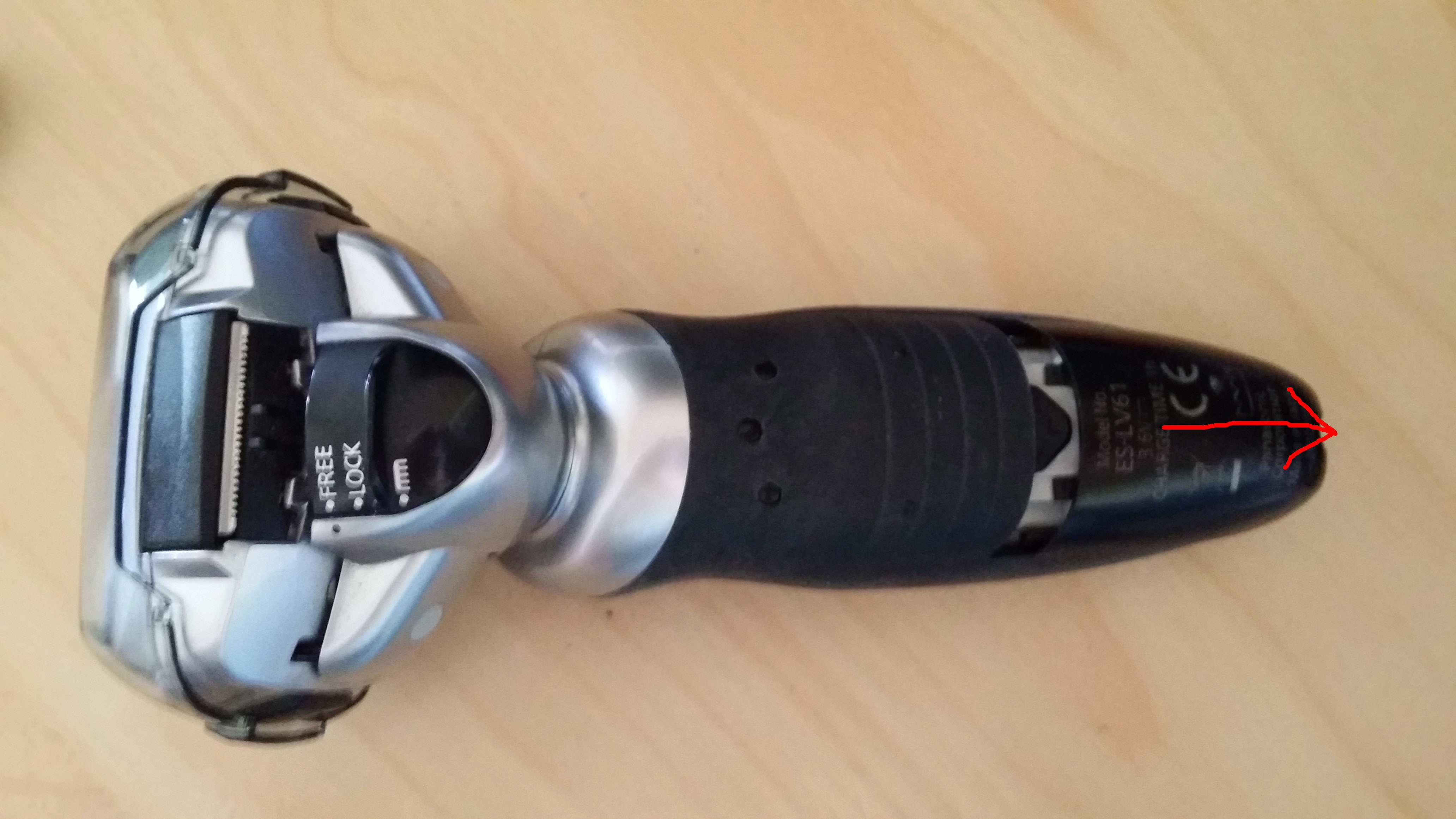

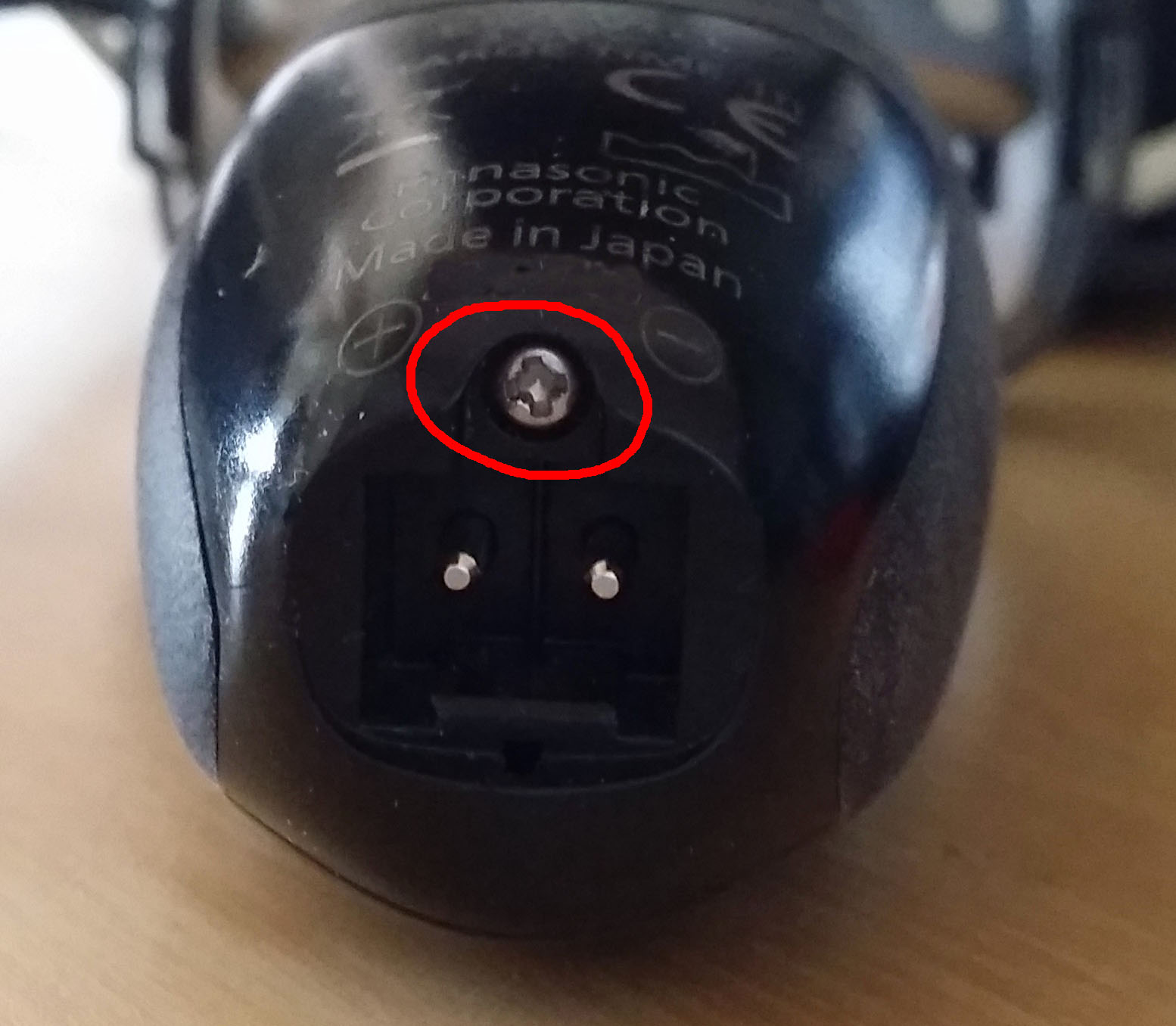

  • Remove the shrew located at the botton by the power socket.

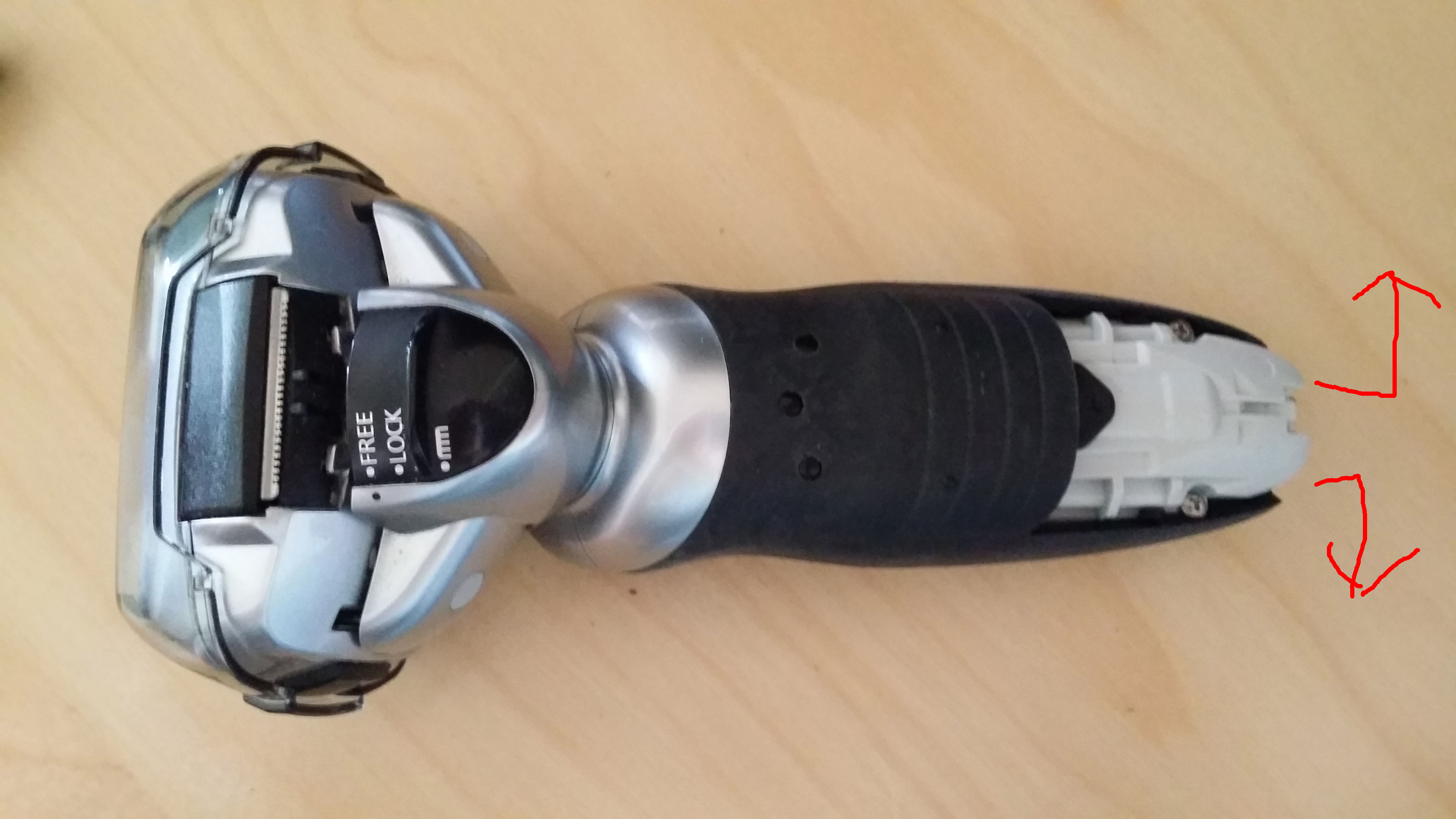

  • Pull lid down and up

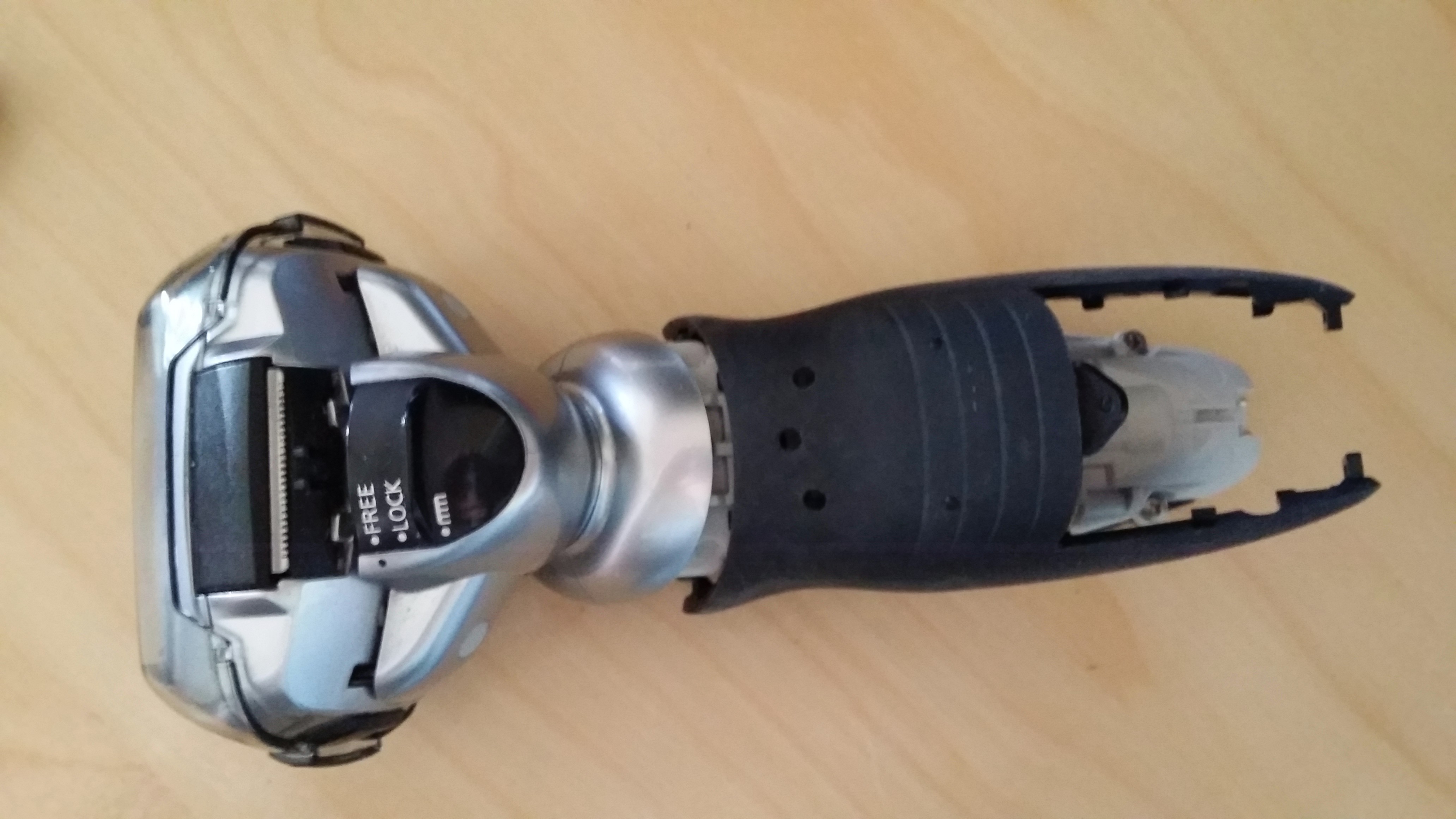

  • Remove rubber hand grip by un-clipping top end and pulling up

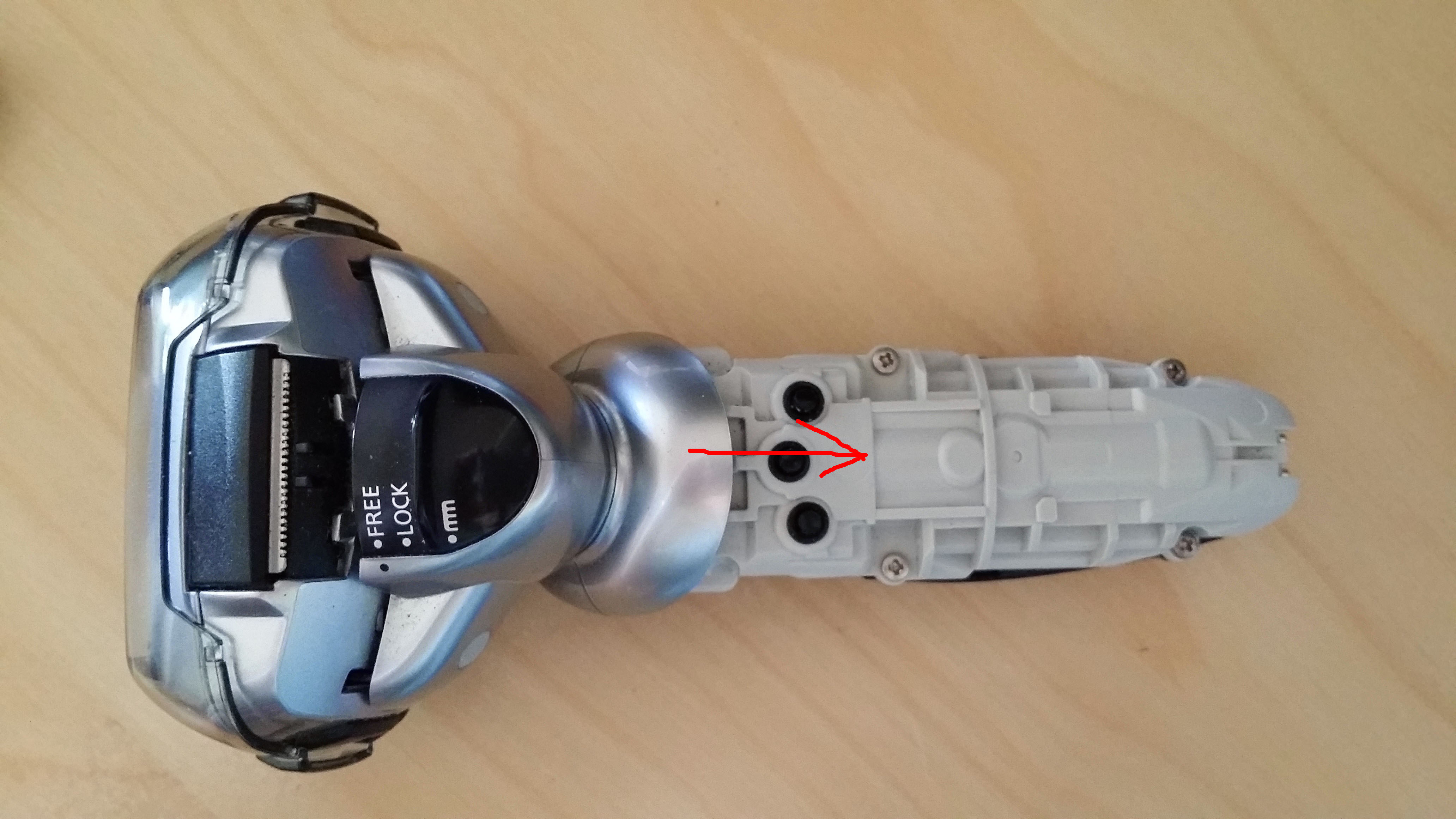

  • Remove the top silver ring by pulling on it

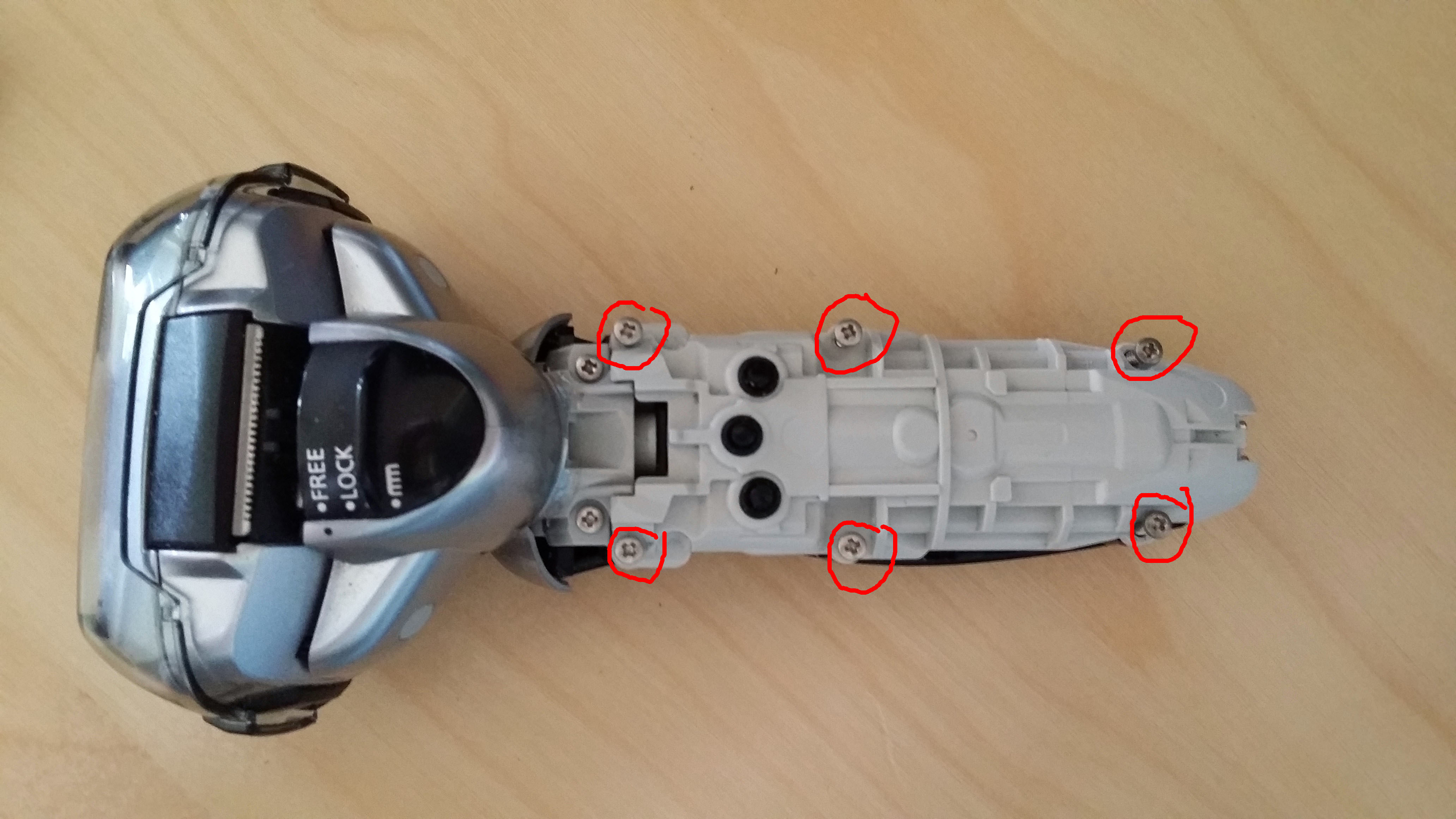

  • Remove the 6 screws around the battery cover

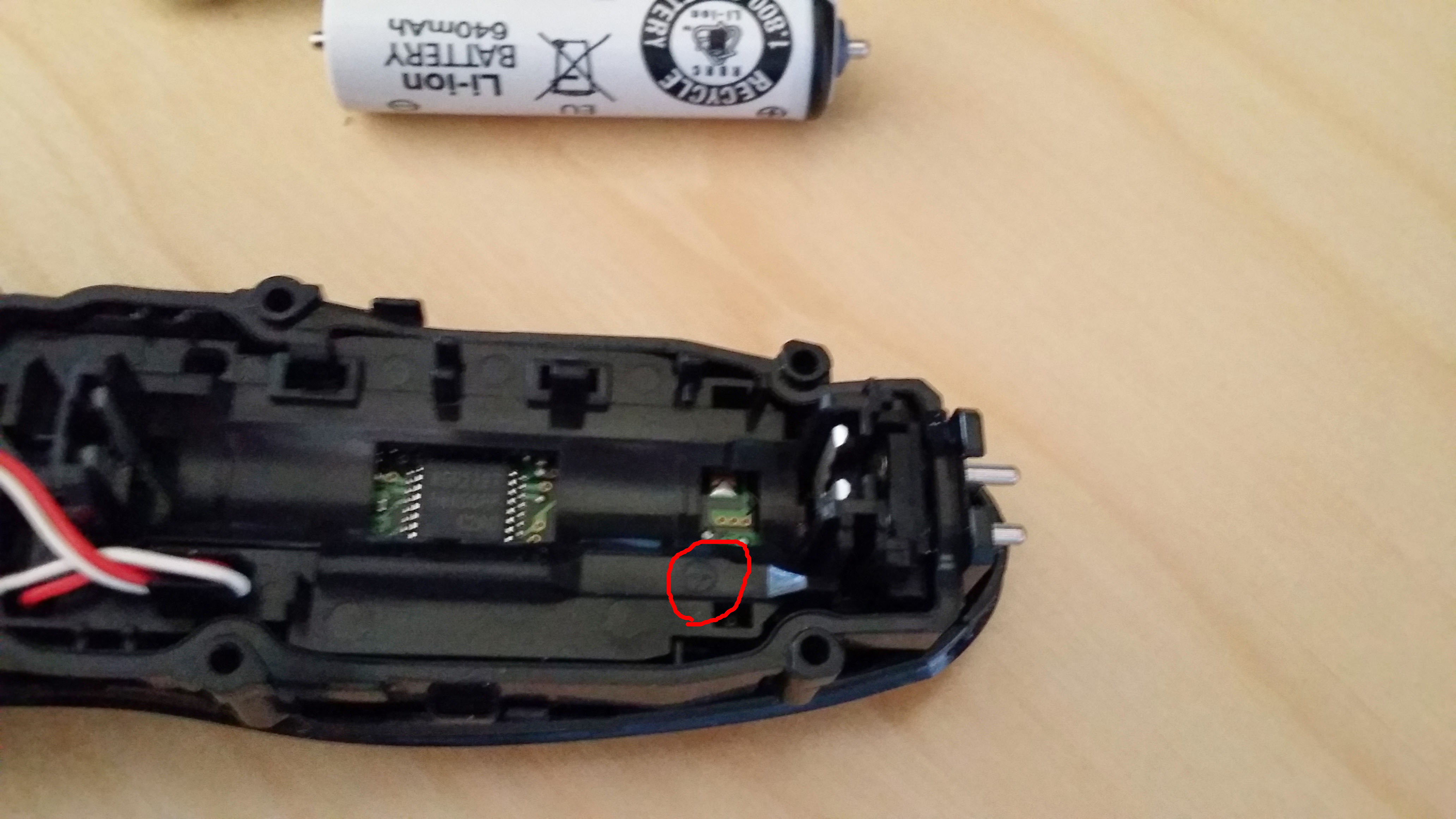

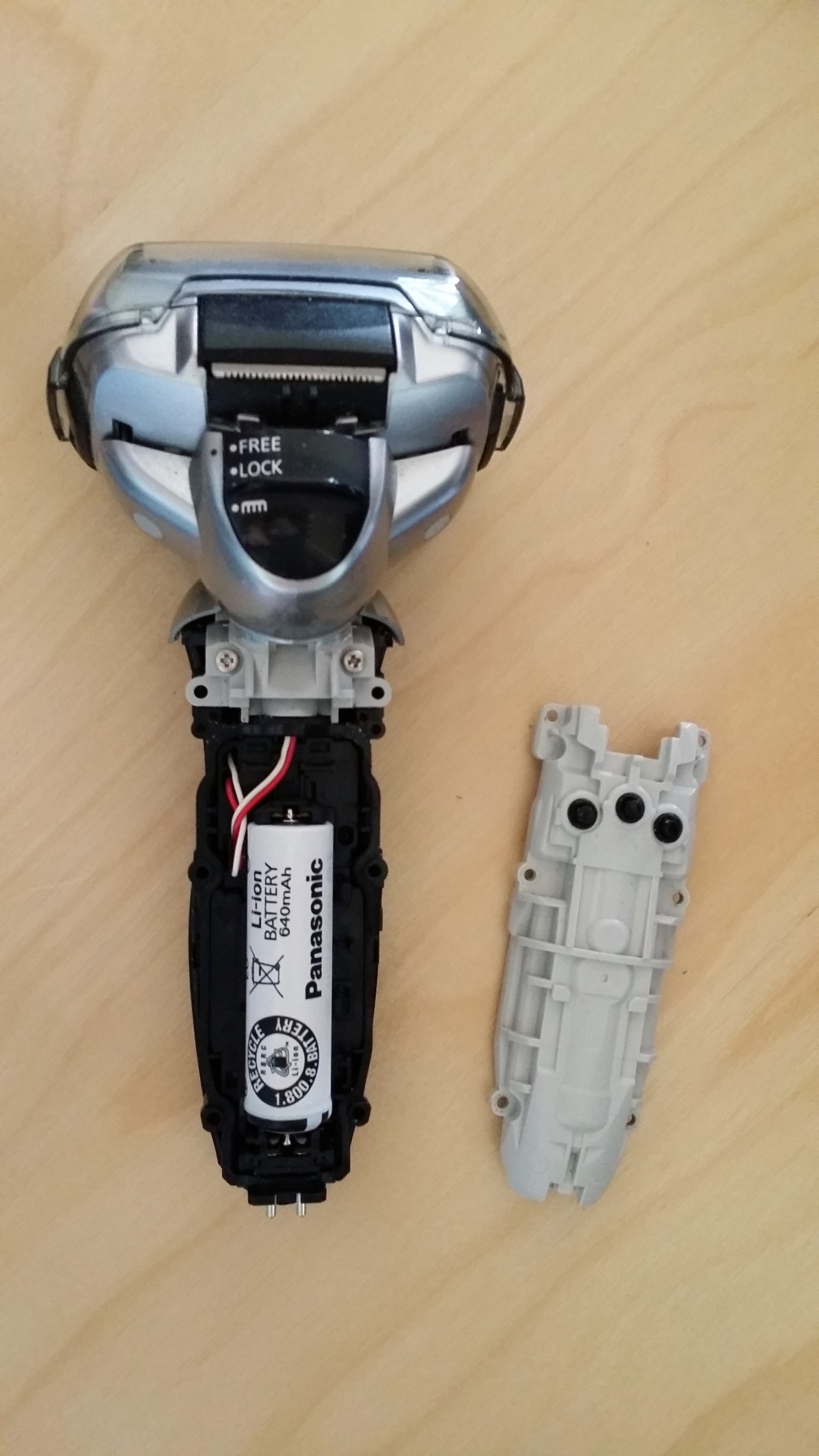

  • You can now pull the old battery out and put the new one in
  • Note the orientation of the battery
  • Re-assemble in reverse order.
